| Product Attribute | Attribute Value |
|---|---|
| Antenna Type | Grid |
| Connection Type | N-Female |
| Frequency | 5800 MHz |
| Frequency Range | 5725-5850 MHz |
| Gain | 22 dBi |
| Impedance | 50 Ohms |
| Power | 100 W |
| Series |
Overview

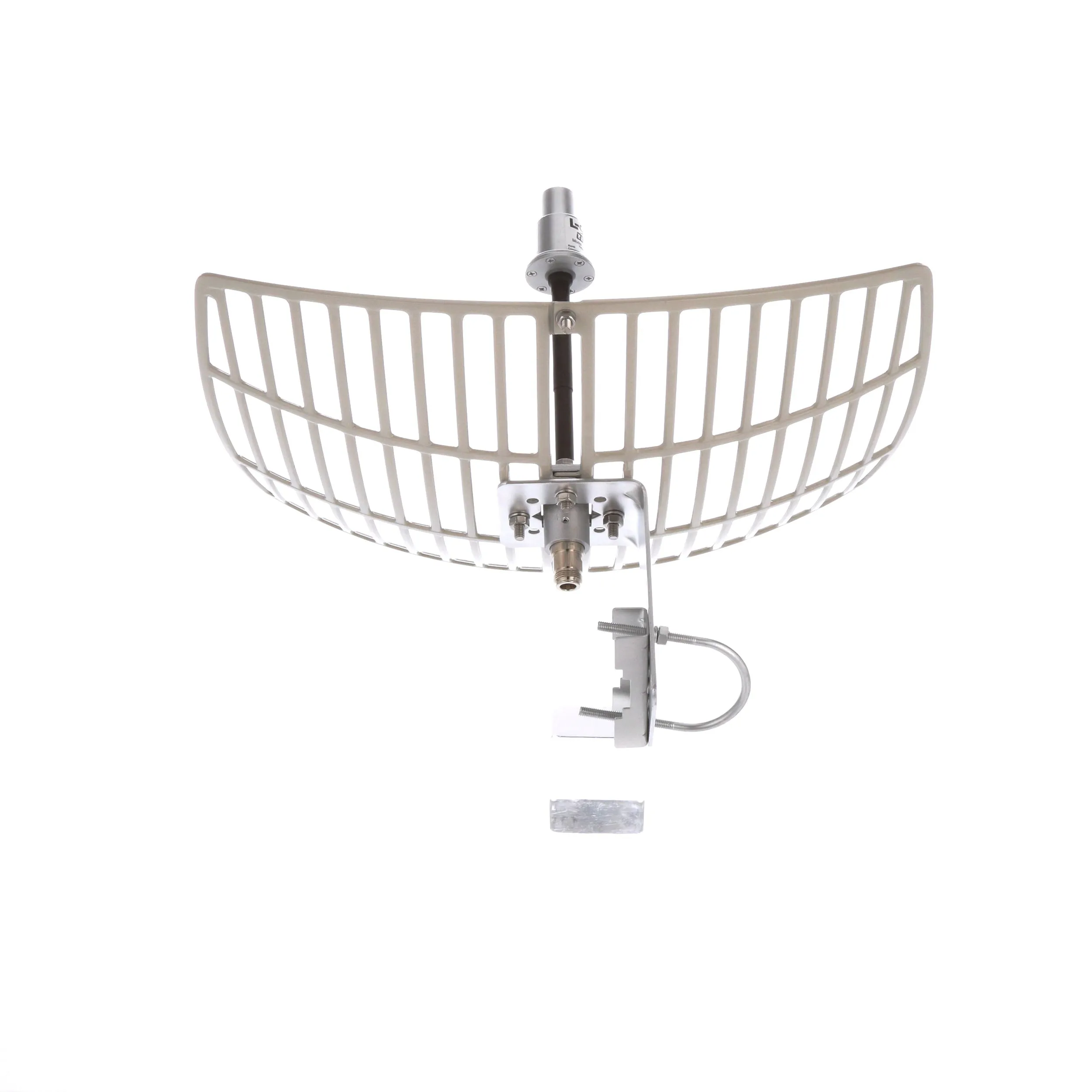

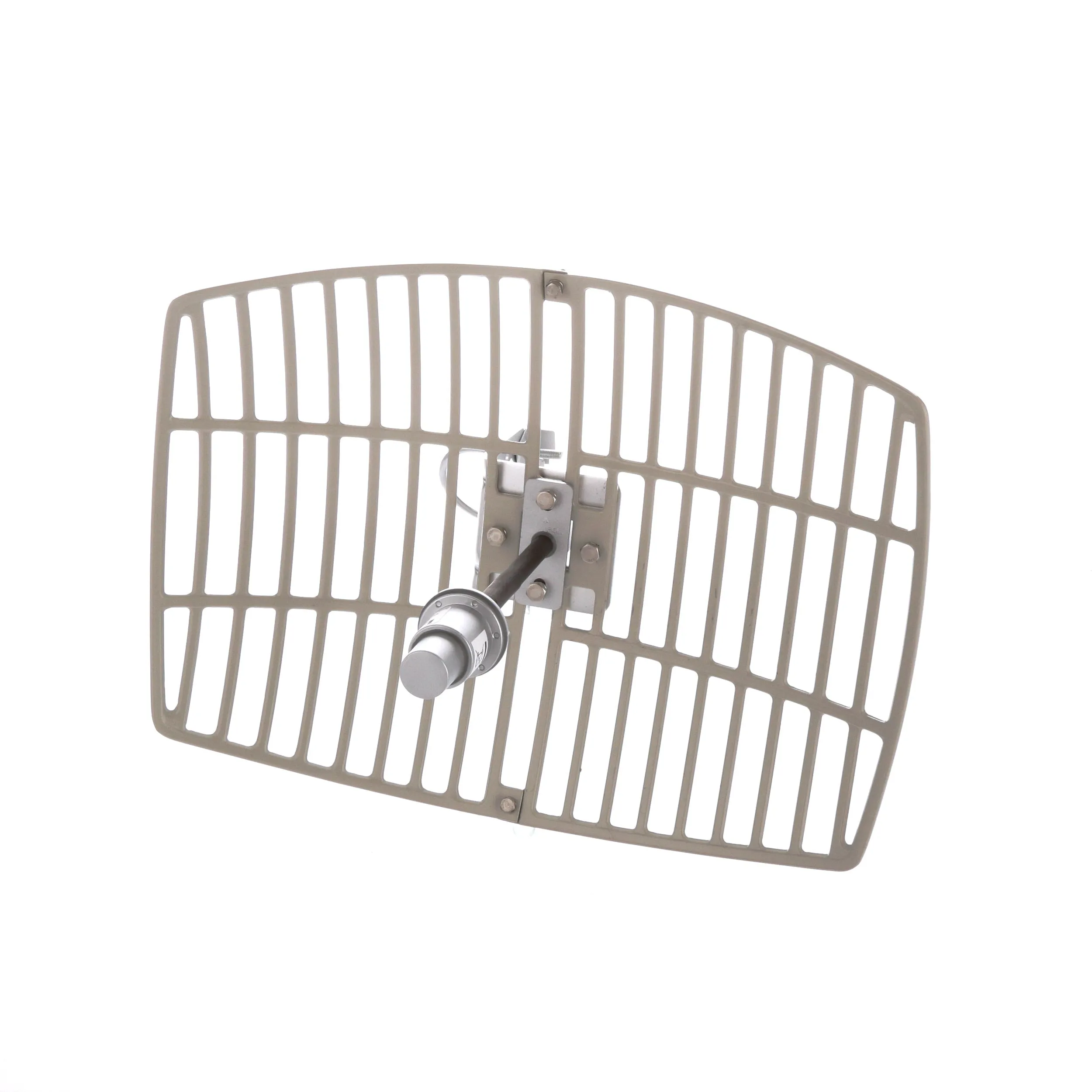

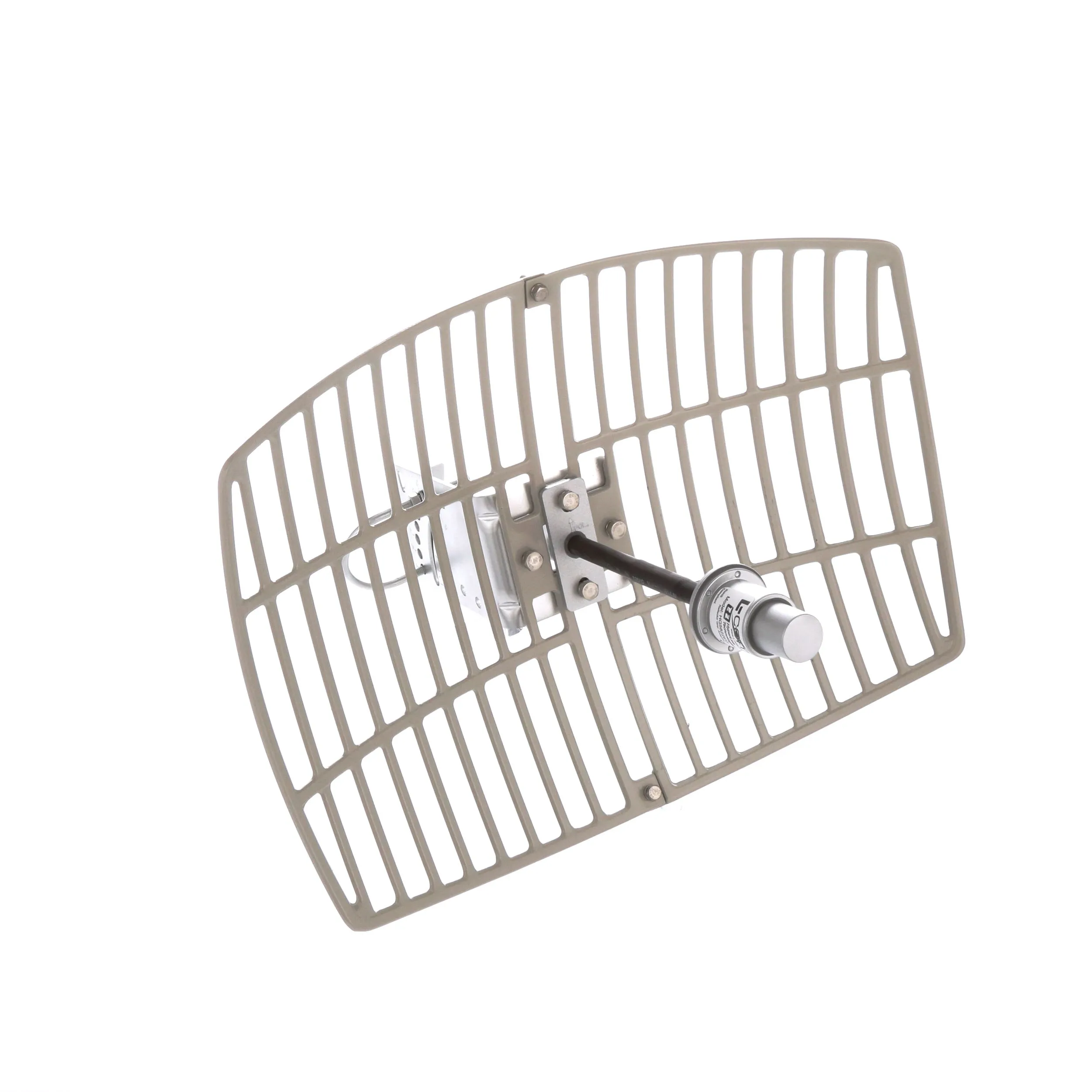

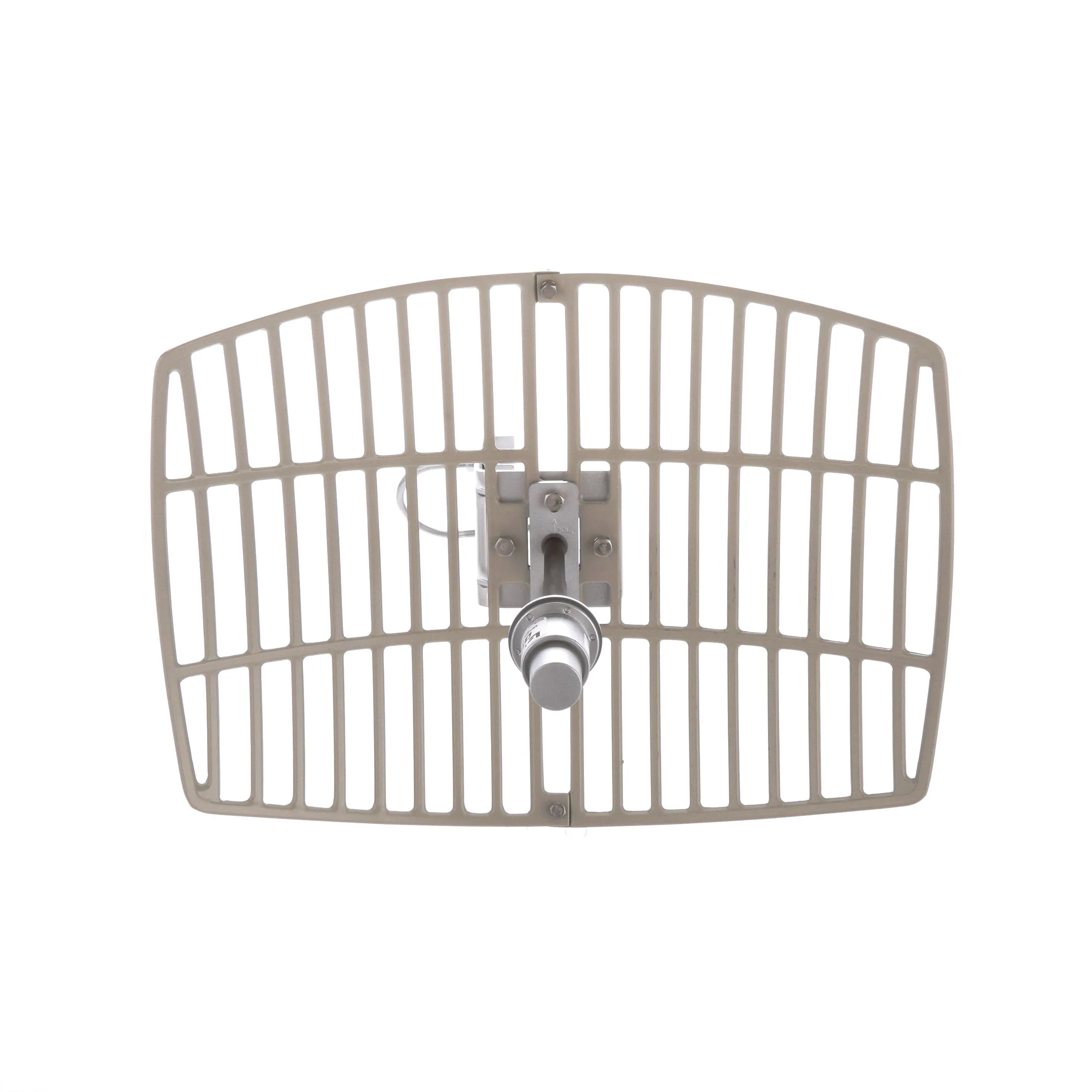

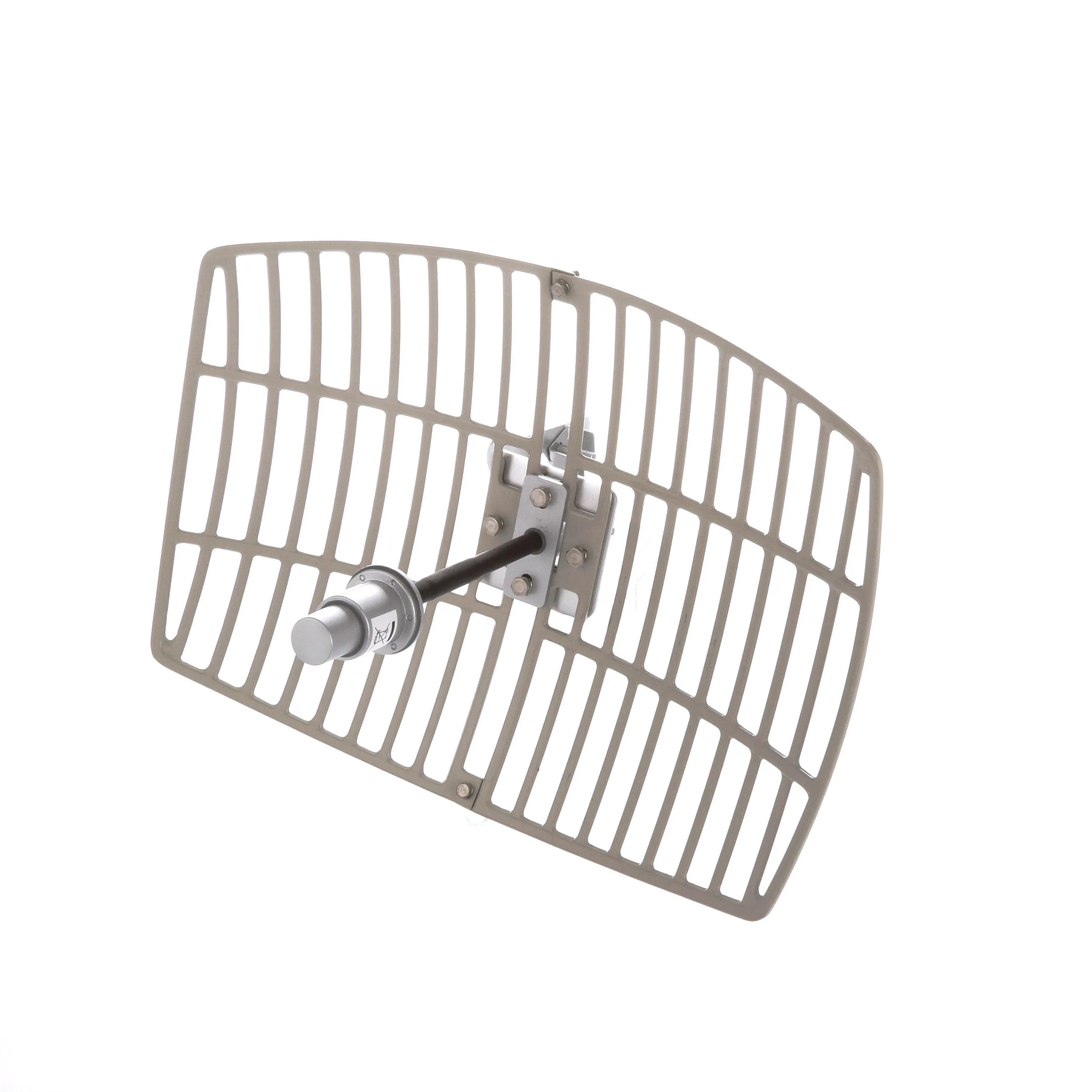

The HyperLink HG5822EG High-Performance Reflector Grid Wi-Fi Antenna is ideal for long-range highly directional 5.8 GHz 802.11a/n applications. These antennas are ideal for point to point systems, point to multi-point and wireless bridges. Its compact design makes it nearly invisible in most installations, and it can be installed for either vertical or horizontal polarization.
The antennas construction features a die cast aluminum reflector grid for superior strength and light weight. The 2-piece reflector grid is simple to assemble and significantly reduces shipping costs. The grid surface is UV powder coated for durability and aesthetics. The open-frame grid design minimizes wind loading.
This antenna is supplied with a tilt and swivel mast mount kit. This allows installation at various degrees of incline for easy alignment. They can be adjusted up or down from 0° to 60°.
