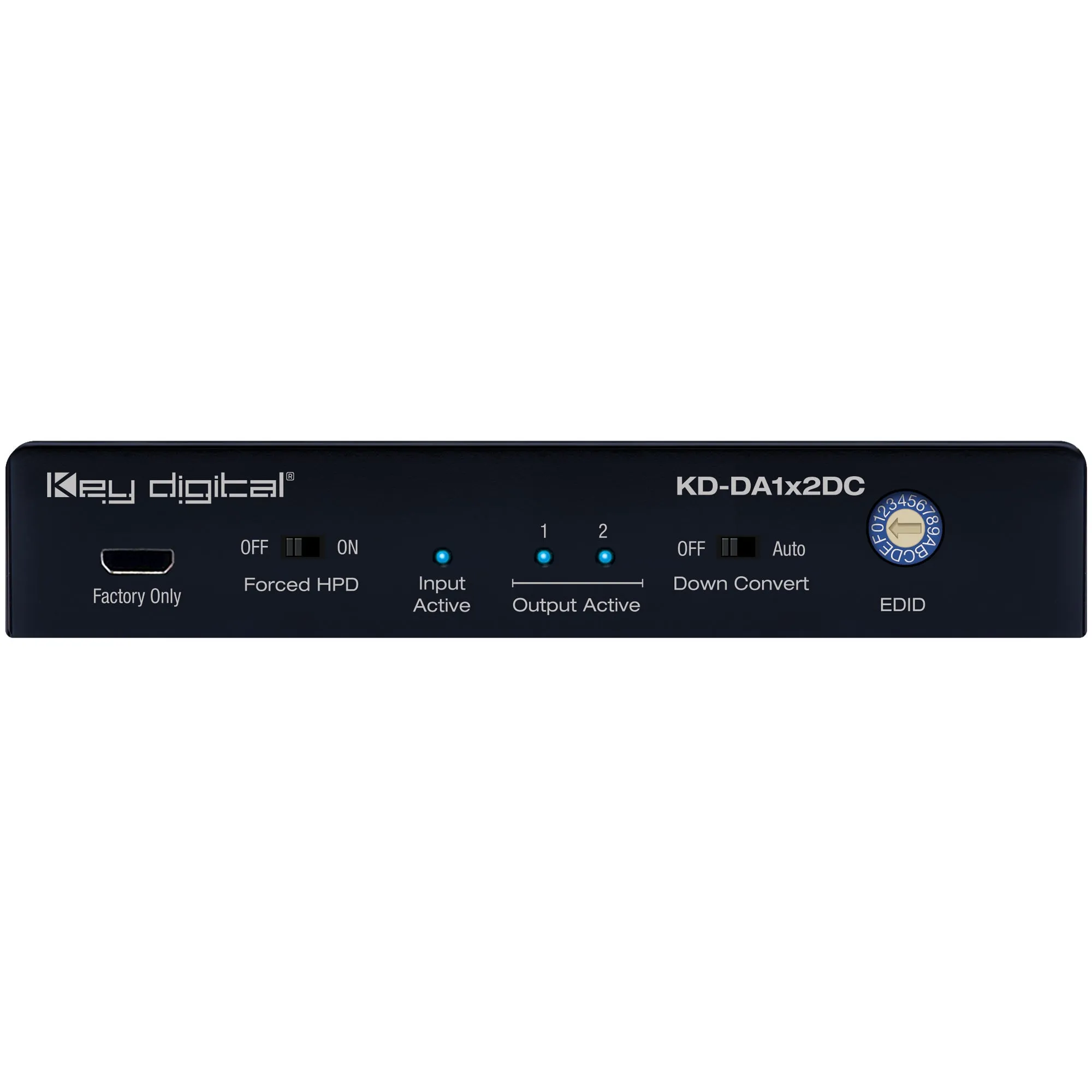

KD-DA1x2DC is an HDMI splitter/distribution amplifier with 4K 18G resolution signal support and a 4K to 1080p resolution down conversion option. This enables a single HDMI video source to be displayed on multiple video displays, regardless of 4K or 1080p resolution support.
The KD-DA1x2DC stands out for its professional integration tools and versatile audio de-embed ports. It also features intelligent EDID management.
These features make it a reliable and cost-effective choice for a wide range of professional installations.
High-Quality Audio-Video Integration
The KD-DA1x2DC is engineered to deliver superior quality, performance, and reliability, all at an affordable price.
We specifically designed it for easy integration into professional audio-video installations. It's suitable for everything from digital signage to surveillance monitoring applications and beyond.
Versatile Audio De-embed Ports
The KD-DA1x2DC HDMI audio splitter includes L/R analog and optical digital audio de-embed ports.
This allows for integration with amplifiers, distributed audio systems, or sound bars. A flexible and comprehensive audio solution for any setup!
Support for Ultra high-def Video
The KD-DA1x2DC supports up to 4K/UHD video resolutions with 4:4:4 chroma sub-sampling, 12-bit deep color, and HDR support.
Intelligent EDID Handshaking
To address common HDMI handshaking and integration challenges, the KD-DA1x2DC features EDID handshaking and Forced Hot Plug Detection professional tools for a smooth and hassle-free integration experience.
Features
- HDMI Signal Distribution: 1 HDMI source to 2 HDMI outputs/displays
- Ultra HD/4K Support: 4096x2160 or 3840x2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps bandwidth)
- Resolution Support: Supports all SD, HD, and VESA (VGA, SVGA, XGA, WXGA, SXGA, UXGA) up to 4096x2160p
- 4K to 1080p Down Convert: When enabled, resolution conversion is applied to individual outputs(s) based on EDID from the connected display
- Audio De-embedding: Audio of the connected HDMI input is output at the digital Optical and analog 3.5mm stereo connectors
- Full Buffer System™: Manages TMDS re-clocking / signal re-generation, HDCP authentication to source & display, and EDID Control handshake
- EDID Management: Internal library with 15 internal EDID handshakes including 4K with HDR in addition to native EDID data copied from output/display 1
- Surround Audio Support: DTS-HD Master Audio™, DTS:X®, Dolby® TrueHD, Dolby Atmos®
Specifications
- Input: HDMI Connector, Type A, 19 Pin Female
- Output (Each): HDMI Connector, Type A, 19 Pin Female
- Bandwidth: TMDS bandwidth 18 Gbps
- DDC Signal (Data): Input DDC Signal - 5 Volts p-p (TTL)
- HDMI Video/Audio Signal: Input Video Signal - 1.2 Volts p-p
- Power Supply: KD-PS5V2ASC, 5V/2A, 100-240VAC, 50-60Hz,
- Interchangeable head, screw-in connector
General
- Regulation: CE, RoHS, WEEE
- Enclosure: Black Metal
- Product Dimensions: 4.96” x 2.74” x 0.91”
- Packaging Dimensions: 8.27” x 5.67” x 3.15”
- Product Weight: 0 .45 lb
- Shipping Weight: 1 .12 lb
