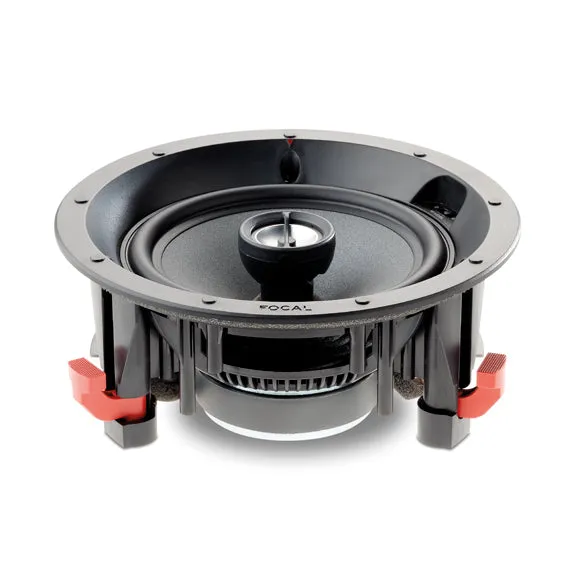

Focal 100ICW6 In-wall/In-Ceiling Loudspeaker
The 100ICW6 loudspeaker is aimed at small to medium rooms and for three types of use: distributed systems (hallways, living rooms…), stereo systems (bedrooms, kitchens…), and home-cinema systems (in dedicated rooms or living rooms). The product is suitable for every room in the house, even in humid environments such as bathrooms. It can be used in-wall or in-ceiling.
This coaxial loudspeaker has a new aluminum inverted dome adjustable tweeter, more compact, improving sound dispersion. It is also equipped with a new 6.5" Polyglass cone. A new crossover improves off-axis listening and avoids the “shower effect”.

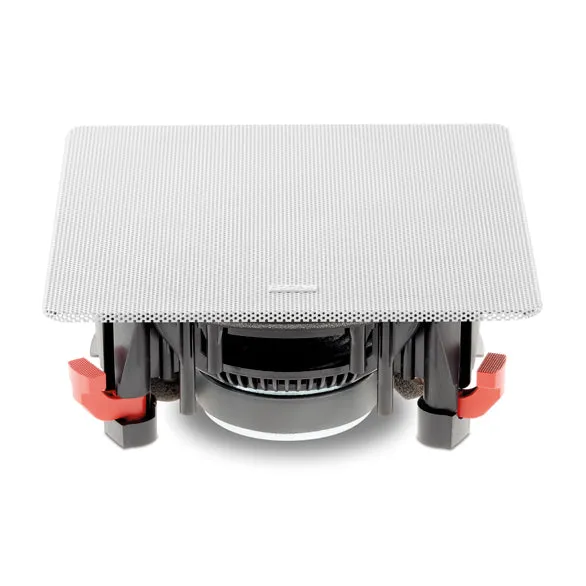

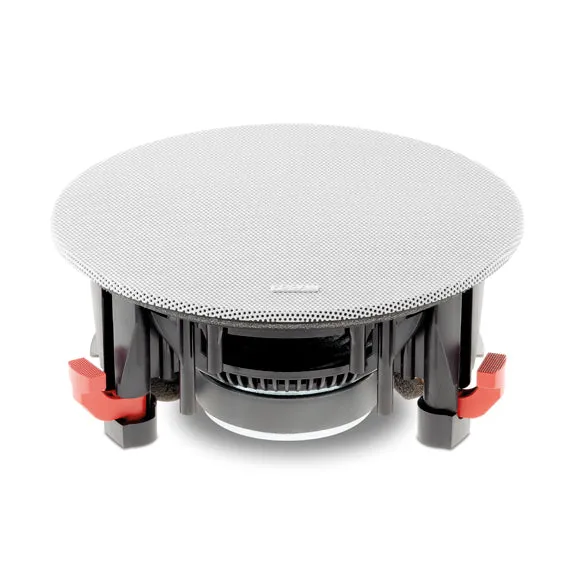

This product can be installed everywhere thanks to a compact design with the speaker driver’s basket and chassis being redesigned as a single piece and also to square and circular magnetic front grilles, frameless. The 100 Series brings an unexpected musicality to your home with ease.
Features
- Product designed and developed in France by Focal
- Compact product with shallow mounting depth
- For in-ceiling or in-wall loudspeakers (1 product, 2 uses)
- Possible to connect two loudspeakers to the same amplifier output
- Ready-to-paint grille
Specifications
Drivers: 1" aluminum inverted dome tweeter, 6-1/2" Polyglass midbass
Sensitivity (2.83 V /1 m): 89 dB
Frequency response ( /-3 dB): 62 Hz-23 kHz
Low-frequency point (-6dB): 50 Hz
Nominal impedance: 8 Ώ
Minimal impedance: 7.3 Ώ
External dimensions (Ø/Depth): 8-3/16" x 3-47/64" (208 x 95 mm)
Cut-out diameter: 7-1/4" (184 mm)
Depth from wall: 3-37/64" (91 mm)
Net weight (with front grille): 3.3 lb (1.5 kg)
