Overview

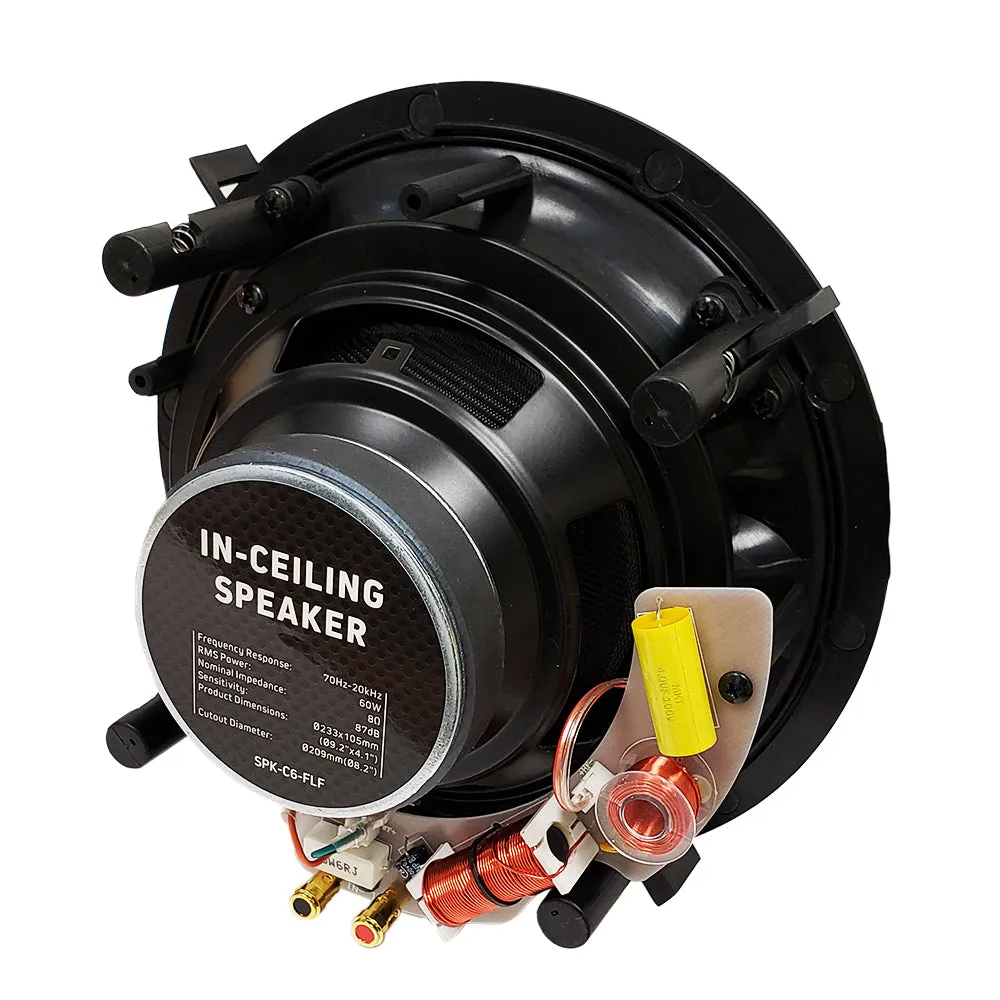

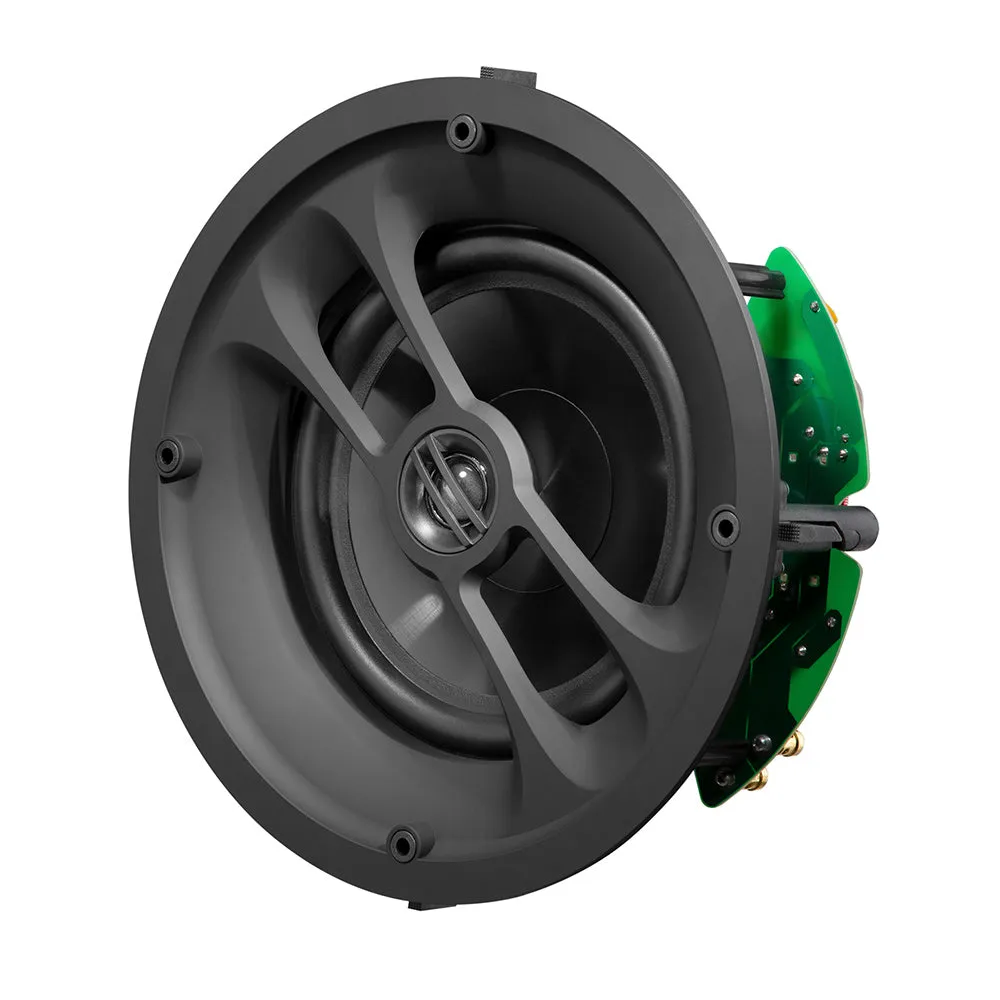

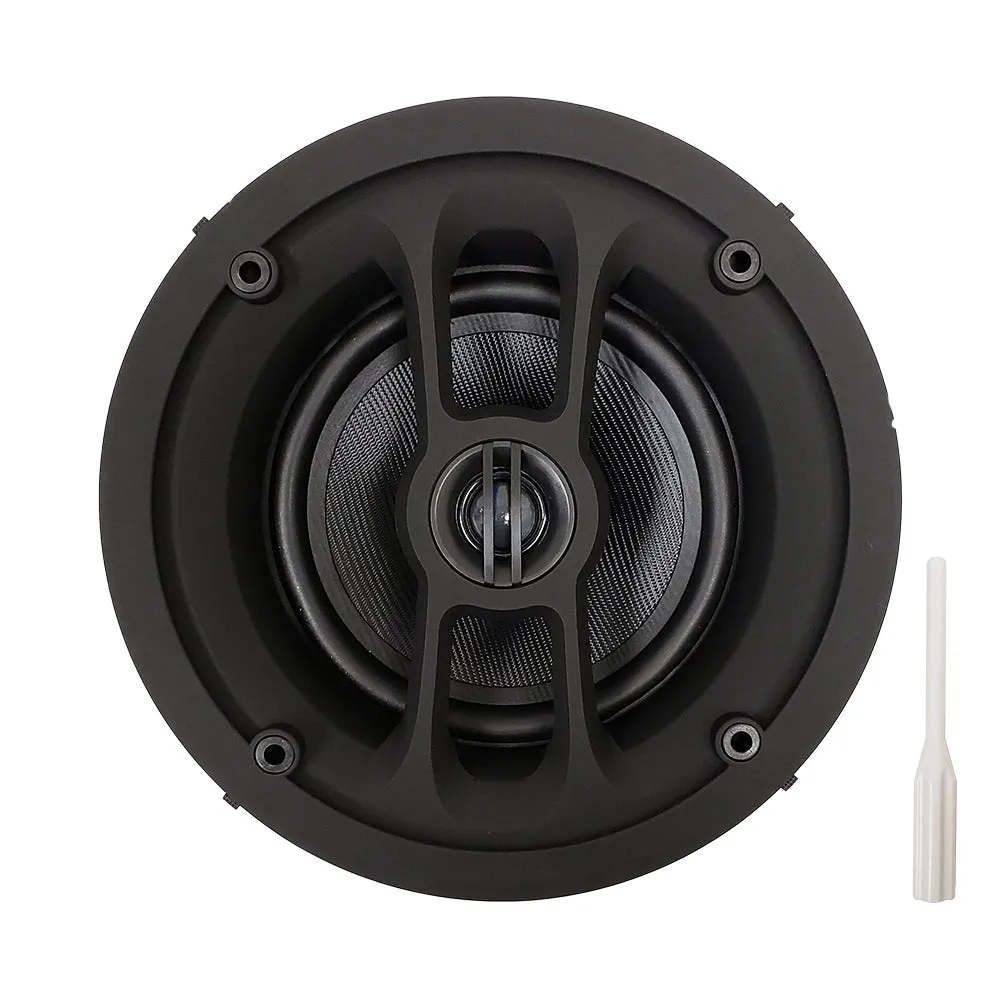

This 2-way in-ceiling speaker has a 8 inch woofer and has a frameless design with a magnetic grille. The woofer is made of woven glass fiber cone and has a 0.75 inch silk dome tweeter which provides premium and long lasting sound quality along with an extremely smooth high frequency response. High-grade rubber edges increase the speakers performance and quality while the sophisticated crossover works to deliver deep bass. Also, there is a /- 3dB adjustment to further customized the listening experience. Installation is quick and easy as each speaker comes with a cut-out template for post construction installation. The speakers are secured with swing-out dog legs and can be installed in both residential and commercial applications. This 2-way in-ceiling speaker can be used in indoor environments. The woven cone and high-grade rubber edge offer high quality, long-lasting sound. This speaker also offers a /- 3dB adjustment for further customized listening. It can be used in residential and commercial applications.

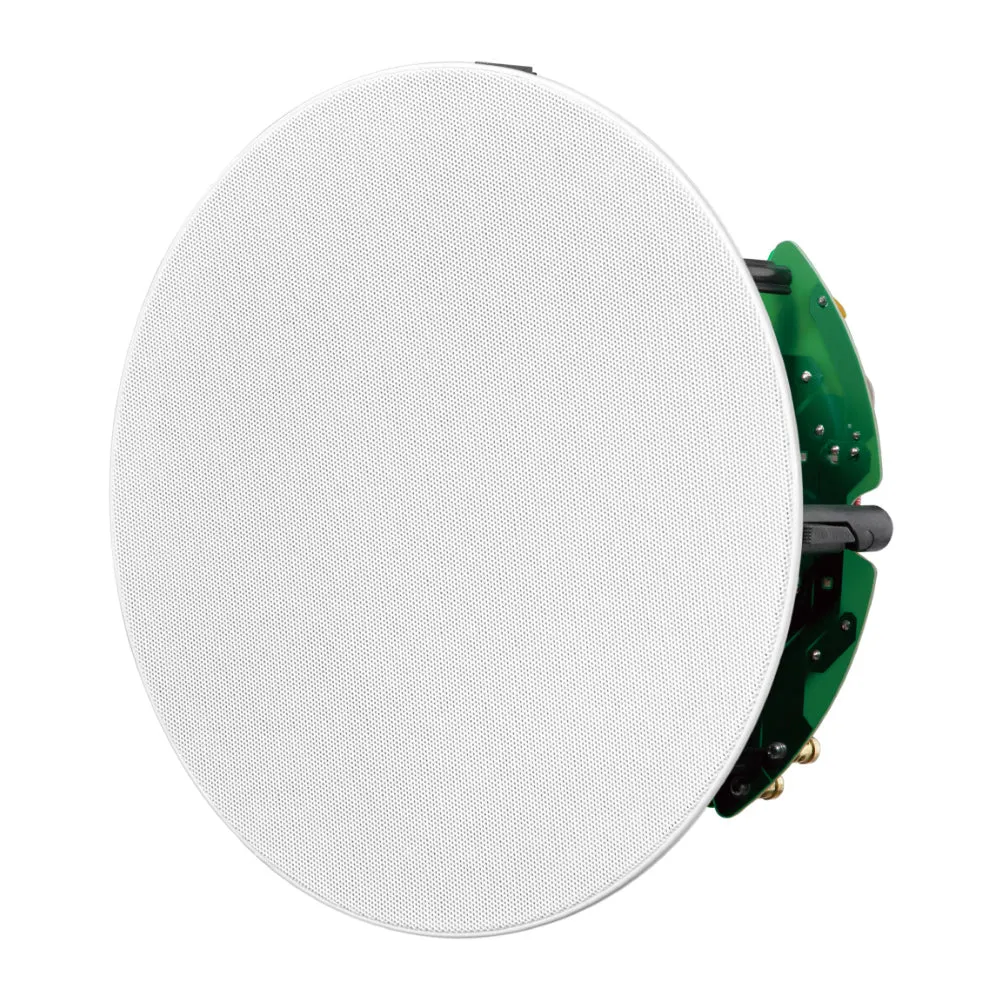

Modern Frameless DesignThis compact in-ceiling speaker provides premium performance in background, foreground music sound systems. It has an attractive frameless design and micro-perforated grille which give it minimum visibility for a clean and built-in look. The Best Sound QualityThis speaker has the ability to handle high power, it also has wide frequency response and low distortion make it ideal for sound systems requiring a higher fidelity sound from ceiling loudspeakers. It's equipped with woven glass fiber cone woofer to delivers deep clear bass, a silk dome tweeter to delivers pristine highs and butyl rubber surround for longevity and excellent bass performance. Quality Components and FeaturesThis speaker has a front accessible /- 3dB adjustment for fine tuning to the installation environment, gold plated terminals and quality crossover components. Easy and Flexible InstallationThis speaker is designed to offer greater flexibility in terms of application. It is equipped with dog leg mounting system for a fast and easy installation. The magnetic grille provides dust prevention and also protection from damage. |
Specifications
Physical Characteristics | |
|---|---|
| Mounting Style | In-Ceiling Mount |
| Speaker Color | Black |
| Grille Color | White |
| Dimensions | Ø284x115mm (Ø11.2"x4.5") |
| Cutout Size | 259mm (10.2") |
| Woofer | 8" Woven Glass Fiber Cone |
| Tweeter | 0.75" Silk Dome |
| Magnetic Grille | Yes |
| Frameless Design | Yes |
| Dispersion Angle | 120° |
Performance | |
| Frequency Response ( /- 3dB) | 55Hz - 20KHz |
| Efficiency | 89dB |
| RMS Power | 80W (each) |
| Max Power | 160W (each) |
| Nominal Impedance | 8Ω |
| FS | 50 HZ |
| QES | 0.92 |
Compatible Brackets | |
| WP-CLIP-SP8 | |
Packaging Information | |
| Package Quantity | 1 Pair |
| Product Weight | 4.50 lbs [2.04kg] |
